Cat. No. 0090

FHME Child

• Bacteria Filter is designed for single patient use
• Recommended T.V. range(ml):150-500
• Dead space(ml): 29
• Resistance(cmH20):
  max. at 30 1/min 1.02
  max. at 60 1/min 2.67
  max. at 90 1/min 4.35
• Moisture output: 31mg/L at TV 500cc
• Bacteria Filter efficiency:
  BFE>99.99%
  VFE>99.99%

Cat. No. 0091

FHME

• Single patient use
• Recommended T.V. range(ml):250-1000
• Dead space(ml): 45
• Resistance(cmH20):
  max. at 30 1/min 0.74
  max. at 60 1/min 1.97
  max. at 90 1/min 3.50
• Moisture output: 33mg/L at TV 500cc
• Filter efficiency:
  BFE>99.99%
  VFE>99.99%

Cat. No. 0092

High oerformance bacteria filter

• Single patient use
• Filter efficiency:
  BFE>99.99%
  VFE>99.99%
• Resistance: 1.0cmH2O at 60 LPM

Cat. No. 0090L

Filter (membrane) for BACTERIA

• Size: 63 millimeters or 60 millimeters
• Weight : 100g or 150g or 200g
• BEF ( 3.0 U): 99.97%
• VFE ( 2.9 u): 99.97%
• Pressure resistance
  (1) 100g: 0.32 kpa/30LPM. 0.65 kpa/60LPM.
  (2) 150g: 0.38 kpa/30LPM. 0.76 kpa/60LPM.
  (3) 200g: 0.45 kpa/30LPM. 0.90 kpa/60LPM.

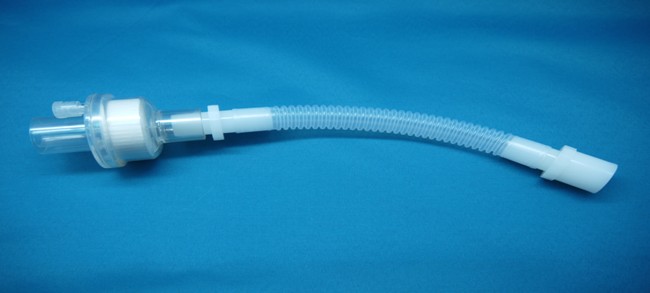

Cat. No. 1616

HME with tube

• Max. at 30L/min 0.64
• Max. at 60L/min 1.44

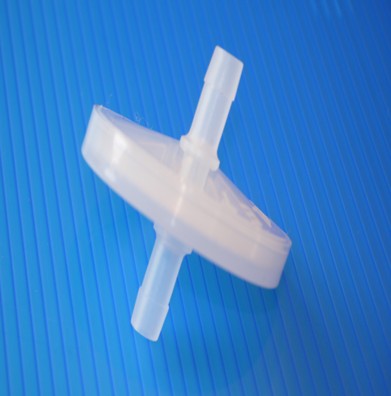

Cat. No. 0096

Suction/ Insufflation filter

• OD 7.3mm X OD 7.3 mm

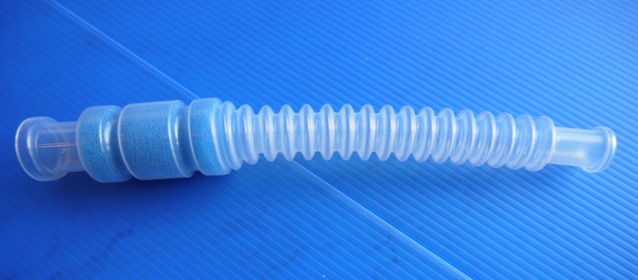

Cat. No. 0093

HME

• For home care use
• Max. at 30L/min 0.30
• Max. at 60L/min 1.25

0090

0091

0092
